Rubber Roofing Installation Guide – Easy Steps
Did you know that rubber roofing can provide a durable, leak-proof finish for your roof, with a life expectancy of 50+ years? It’s true! Installing rubber roofing is a practical and long-lasting solution that can protect your home from the elements and save you money on costly repairs.
Key Takeaways:
- Follow these easy steps to apply rubber roofing and ensure a long-lasting result.
- Clean and prepare the roof deck before installation.
- Use a water-based deck adhesive to bond the rubber membrane to the roof deck.
- Apply contact adhesive and trims to secure the edges and corners of the rubber roofing.
- Overlap rubber roofing pieces to create a watertight seal.
- Finish the edges with caulk and install an aluminum bar for added protection.
- Maintain your rubber roof regularly for optimal performance and longevity.
Getting Started: Roof Deck Preparation
Before you begin the installation process, it’s important to properly prepare the roof deck. We’ll guide you through the necessary steps to ensure a successful rubber roofing installation.
Clean the Roof Surface
Start by thoroughly cleaning the roof surface. Remove any dust, dirt, rust, oil, grease, and loose material. Cleaning the roof not only improves adhesion but also enhances the longevity of the rubber roofing system.
Dry Surface is Key
Ensure that the roof surface is completely dry before proceeding with the installation. The rubber membrane will not adhere properly to wet surfaces. Moisture can compromise the durability and effectiveness of the rubber roofing.
Address Old Roofing Residue
If there is any residual bitumen from an old roof, it should be removed or overboarded. This step is crucial as the presence of old bitumen can affect the performance of the EPDM rubber membrane.
Now that you’ve prepared the roof deck, you’re ready to move on to the next step of installing the rubber membrane. Stay tuned for our detailed instructions on how to apply the rubber roofing and complete your project successfully.

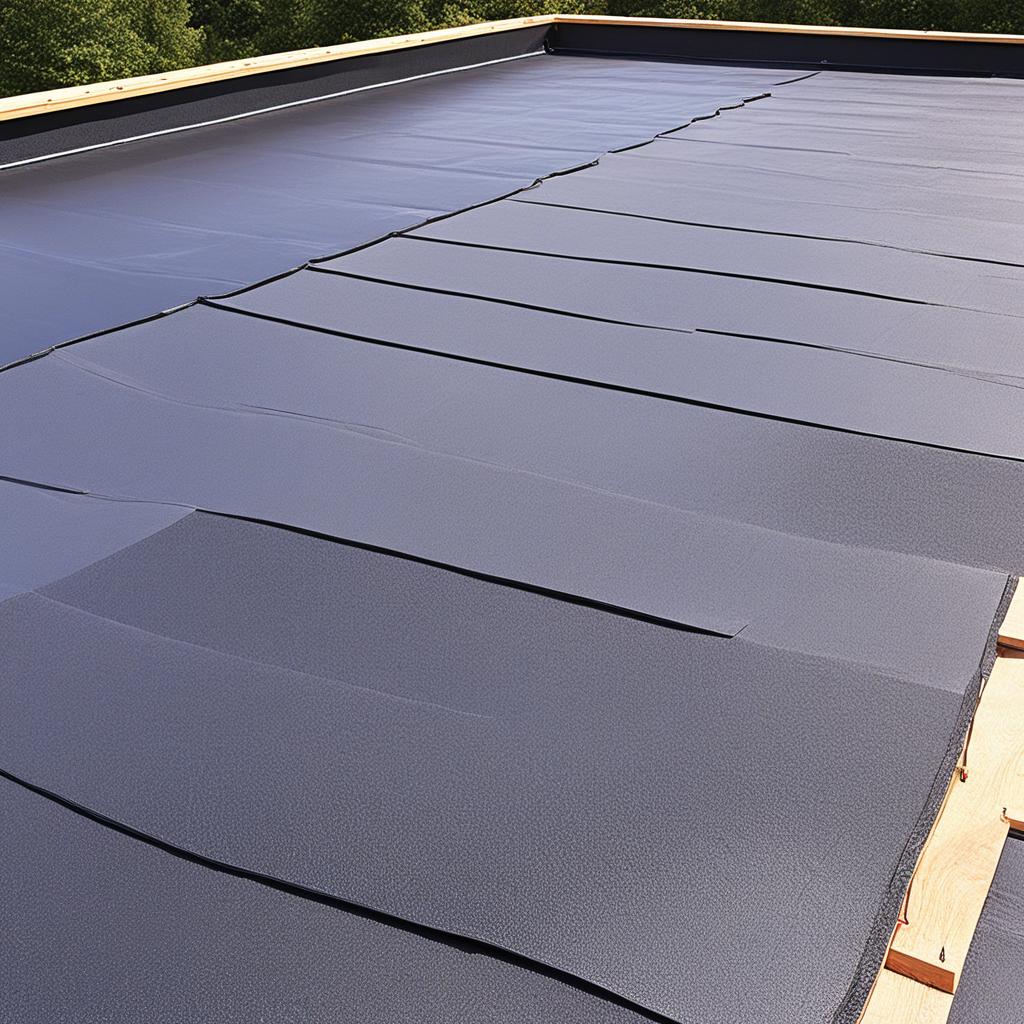

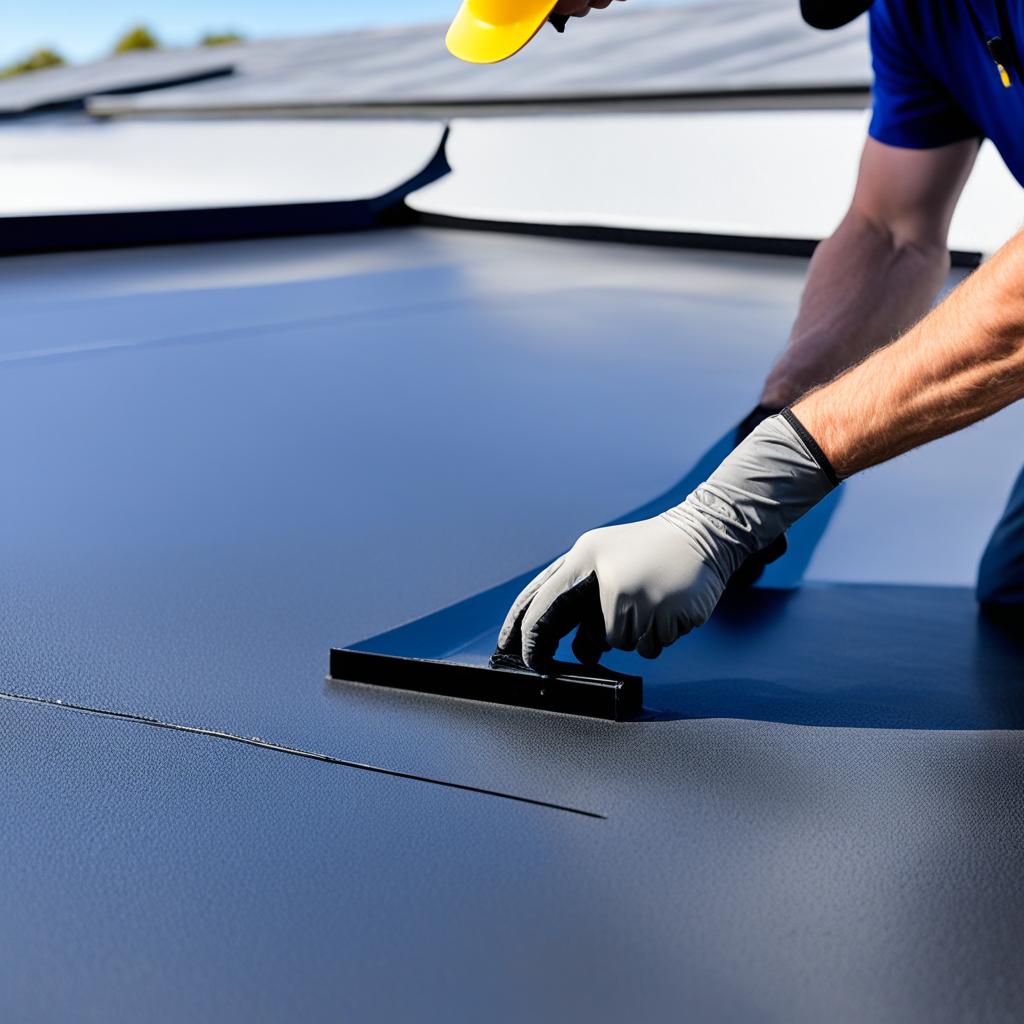

Installing the Rubber Membrane
Once the roof deck is prepared, it’s time to install the rubber membrane. This step is crucial for achieving a durable and leak-proof rubber roofing system.
1. Install the Drip Batten
Begin by installing the drip batten wherever a gutter is present to extend the roof deck and direct water runoff. The drip batten helps protect the edges of the rubber membrane and ensure proper water drainage.
2. Apply Water-Based Deck Adhesive
Next, apply a water-based deck adhesive to bond the rubber membrane to the roof deck. Using a paint roller, apply the adhesive evenly, ensuring full coverage. The adhesive acts as a strong bond between the rubber membrane and the roof deck, providing added security and preventing water infiltration.
3. Fold the Membrane into Position
Immediately after applying the adhesive, fold the rubber membrane back into position while the adhesive is still wet. This step is crucial for ensuring proper bonding between the membrane and the roof deck. Take care to align the membrane correctly and avoid trapping any air bubbles.
4. Sweep the EPDM Membrane
After the membrane is in place, it’s important to sweep it with a broom or squeegee. This sweeping motion helps remove any trapped air and improve the bonding between the membrane and the roof deck. Pay special attention to areas with overlaps or seams to ensure a secure and watertight seal.
By following these techniques for installing the rubber membrane, you’ll be on your way to achieving a long-lasting and reliable rubber roofing system.

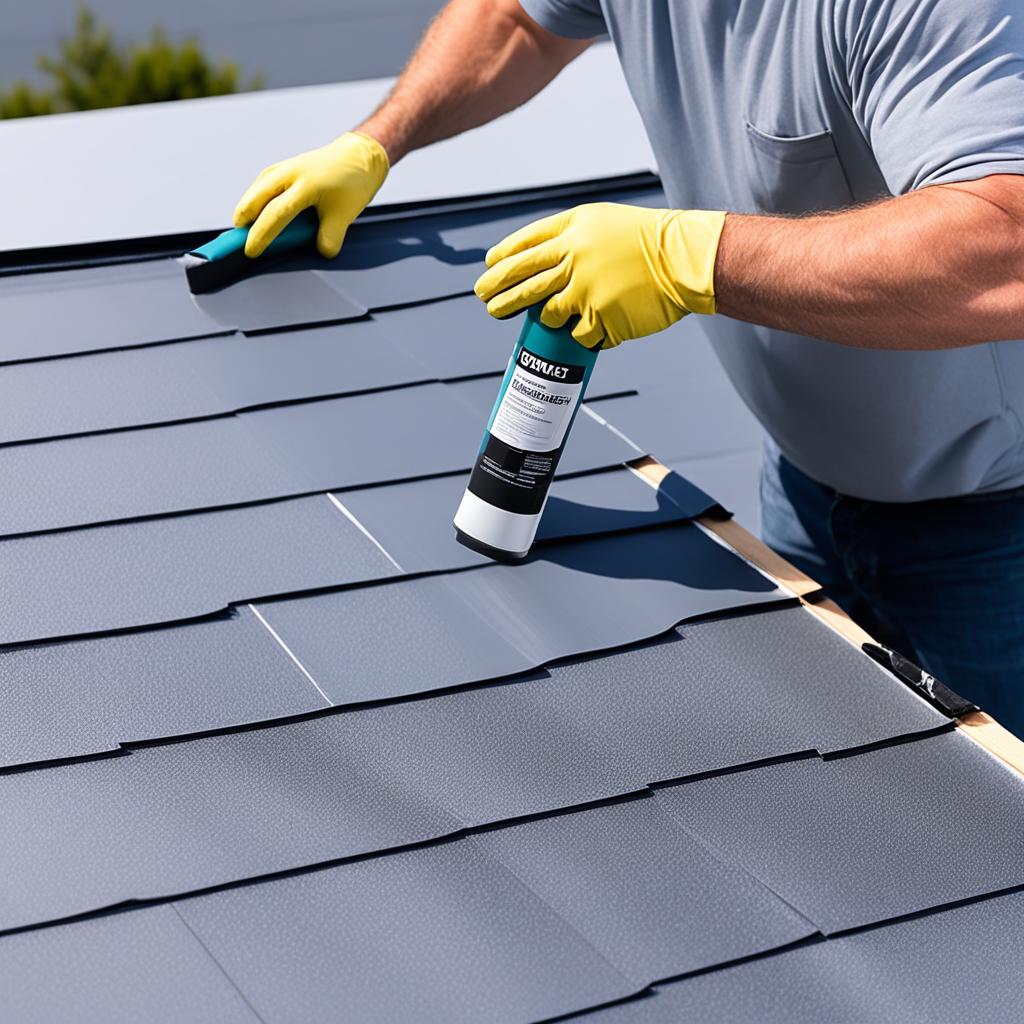

Applying Contact Adhesive and Trims
Now that the EPDM membrane is in place, it’s time to apply the contact adhesive and trims to ensure a secure and professional installation. Follow these steps to complete the rubber roofing application process:
- Prepare the adhesive: Start by preparing the contact adhesive according to the manufacturer’s instructions. Make sure to mix it thoroughly before application.
- Apply adhesive to the roof perimeter: Using a 4-inch mini roller, apply a thin coat of adhesive along the roof deck perimeter and any vertical upstands. This will create a strong bond and prevent any potential uplift or water infiltration.
- Bond the Elastoform: Use a penny roller to ensure proper bonding of the Elastoform to all surfaces. Roll over the surface to ensure maximum adhesion between the EPDM membrane and the roof deck.
- Detail external roof corners: When detailing external roof corners, it’s important to fold the membrane without cutting it and form a “pigs ear” to create a seamless finish. This technique will ensure a watertight seal and a visually appealing result.
- Install trim corners and plastic trim kerb edges: To complete the installation process, install trim corners and plastic trim kerb edges. These additional elements will provide a clean finish and enhance the overall durability of the rubber roofing system.
By following these steps, you can effectively apply the contact adhesive and trims, ensuring a secure and long-lasting rubber roofing application. Remember to always refer to the manufacturer’s guidelines for specific instructions and recommendations.
| Steps | Description |
|---|---|
| 1 | Prepare the adhesive according to the manufacturer’s instructions and mix thoroughly. |
| 2 | Apply a thin coat of adhesive to the roof deck perimeter and vertical upstands. |
| 3 | Use a penny roller to bond the Elastoform to all surfaces. |
| 4 | Detail external roof corners by folding the membrane without cutting and forming a “pigs ear”. |
| 5 | Install trim corners and plastic trim kerb edges to complete the installation. |

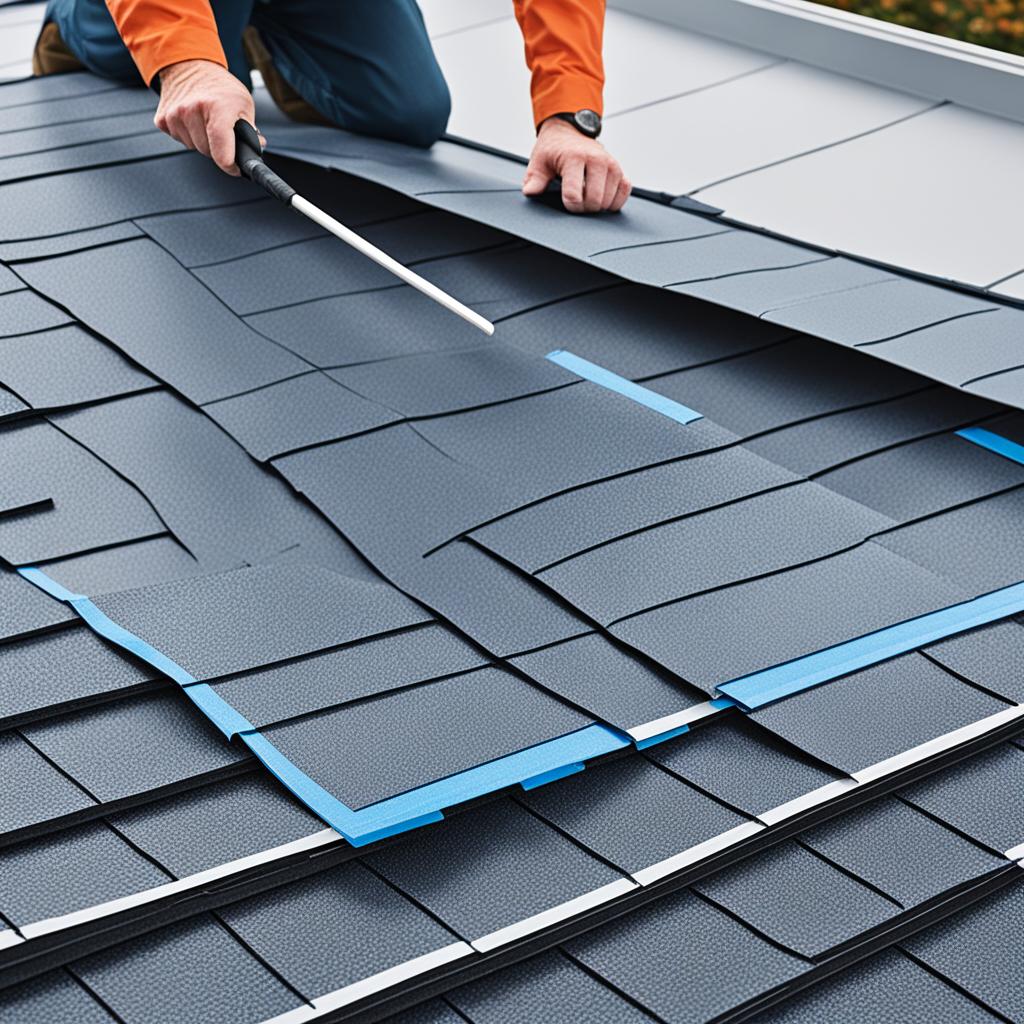

Overlapping Rubber Roofing Pieces
When it comes to installing rubber roofing, proper overlapping techniques are crucial for ensuring a secure and watertight seal. By following the best practices for installing rubber roofing, you can minimize the risk of leakage and enhance the longevity of your roof.
When using multiple pieces of rubber, it’s important to overlap them by at least 4 inches. This overlap creates a sturdy connection between the pieces and prevents water infiltration. To further enhance the bond between the rubber pieces, it’s recommended to apply rubber primer to the overlapping sections.
After applying the primer, fold back the overlapping portion of the rubber and connect the pieces. It’s important to wait until the primer has thoroughly dried before joining the sections together. This method not only ensures a more efficient installation process but also reduces the risk of leakage in the future.
By following these rubber roofing techniques and best practices, you can achieve a seamless and effective installation of your rubber roof. Remember to consult the manufacturer’s guidelines for specific instructions and recommendations regarding overlapping and bonding methods.
| Benefits of Proper Overlapping |
|---|
| Secure and watertight seal |
| Enhanced bond between rubber pieces |
| Efficient installation process |
| Reduced risk of future leakage |

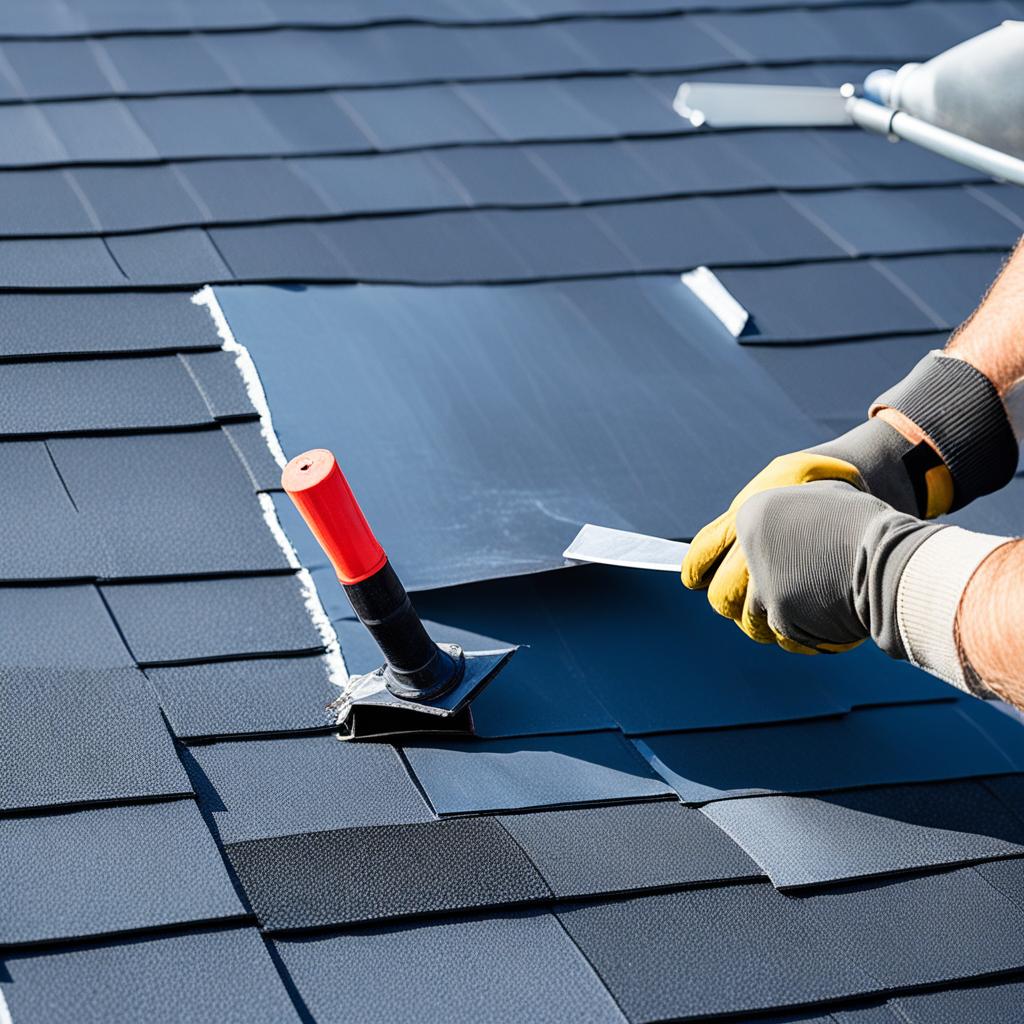

Finishing the Edges of the Rubber Roof
To ensure a watertight and professional finish for your rubber roof, it’s important to pay attention to the edges. Follow these best practices for installing rubber roofing and applying the necessary techniques:
- Caulk the edge with a water-resistant caulk: Apply a generous amount of a high-quality, water-resistant caulk along the edge of the rubber roof. This will create a strong seal and prevent water infiltration.
- Press the rubber onto the caulk: Gently press the rubber membrane onto the caulked edge, ensuring a secure bond. This step further enhances the seal and provides added protection against leaks.
- Install an aluminum bar: For additional security, install an aluminum bar over the edge of the rubber. This bar will further secure the rubber in place, preventing it from lifting or shifting due to wind or other environmental factors.
- Trim any excess rubber membrane: Finally, trim any excess rubber membrane along the edges to achieve a neat and tidy appearance. This step adds to the overall aesthetic appeal of the roof while ensuring the rubber is properly aligned.
By following these rubber roofing techniques and best practices, you can achieve a professional and durable finish for your rubber roof. Take the necessary steps to seal the edges effectively, providing long-lasting protection for your home or building.
| Advantages | Disadvantages |
|---|---|
| Watertight seal | Requires precise trimming |
| Enhanced protection against leaks | Additional materials and labor |
| Professional and tidy finish | May require specialized tools |
| Increased durability | Requires attention to detail |
Maintenance and Longevity of Rubber Roofing
A properly installed rubber roof can have a life expectancy of 50+ years with minimal maintenance. Regularly inspect the roof for signs of damage and fix any issues promptly. This will ensure the long-lasting performance of the rubber roofing system.
Remember to consult the manufacturer’s guidelines for specific maintenance recommendations. By following the correct rubber roofing installation instructions and best practices for installing rubber roofing, you can ensure that your roof remains durable and weatherproof for many years to come.
When it comes to rubber roofing, proactive maintenance is key. Keep an eye out for any signs of wear or tear, such as cracks or punctures, and address them promptly. Clear any debris, leaves, or dirt that may accumulate on the surface to prevent damage. In addition, regularly check the roof for any loose seams or edges and reseal them as needed.
By investing in regular maintenance and following the recommended installation techniques, you can maximize the longevity of your rubber roof and minimize the need for costly repairs down the line. Enjoy the peace of mind that comes with a durable, long-lasting rubber roofing system.
